Parameter
| Sn | Name | Value | Unit | Remarks | |
|---|---|---|---|---|---|
| 1 | Spraying length | 13 | M | ||
| 2 | Max spraying steel tube diameter | Φ600 | Mm | ||
| 3 | Max spraying steel tube weight | 500 | Kg | ||
| 4 | Power | Electric heating | 180 | Kw/h | |
| Fuel | 22 | Kw/h | |||
| Coal | 20 | Kw/h | |||
| Gas type | 20 | Kw/h | |||
| 5 | Pweder oven size | L | 14000 | Mm | |
| W | 2100 | Mm | |||
| H | 3200 | Mm | Highest | ||
| 6 | Moveable spraying room size | L | 4800 | Mm | |
| W | 1300 | Mm | |||
| H | 2400 | Mm | |||
| 7 | Size | 20500 | Kg | ||

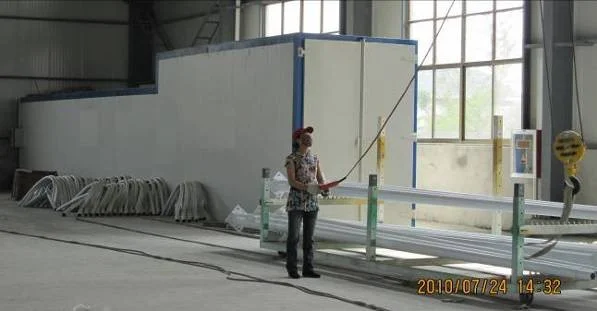

Figure
Characteristic
The room was combined by cold steel rolling plate, the structure was easy, and also easy for cleaning.color side was install the convulsions sets.at the same time we install the dust-proof floodlight.It was very easy to operate spraying.
It adopt spelling installing.there is ripple plate outside.the surface of the oven was rigour, firm,nice,with good heat insulation.the temperature adopt general electrical machine to control,work in heat wind circulate.to keep the temperature in the furnace equality.and fully satisfy powder with 180℃±5℃ require of solidifying.
Major dispositions
（1）powder room
（2）high-voltage electrostatic generator
（3）spray system（4 sets）
（4）powder pump recovery system
（5）0.5t hanging conveyor system（1 set）
（6）traversing car
（7）bake oven curing system（electric heating,fuel type,coal type,gas type）
（8）electrical control system（1set）
